Anatomy of a Static Site

November 17th, 2016

Static sites are a simpler kind of web site because they don’t have a traditional server. The only server that is involved is a static asset server which you don’t have to monitor or maintain.

But these so-called static sites can have a lot of dynamic functionality implemented in JavaScript on the client. This makes them not really static sites at all - perhaps they should be called serverless sites.

That functionality is usually created with complex tools like Webpack, Babel, and npm. Using these tools effectively is NOT simple.

Before you dive into any of these complex tools, you’ll probably want to know:

How do they all fit together? What’s the bird’s-eye view?

So, to get you started on your path to static site mastery, I’ve prepared a few diagrams that show you how static sites work at a high level.

We’ll look at static sites from four viewpoints:

  • End Users: How do users get your site?
  • Deployment: How do you upload your content onto the interwebs?
  • Bundling: How does your code get converted into files that you upload?
  • Development: What does my workflow look like?

End Users

Let’s start at end. When you are all done and your static site is pushed live, your users’ browsers will download your assets from your static asset server.

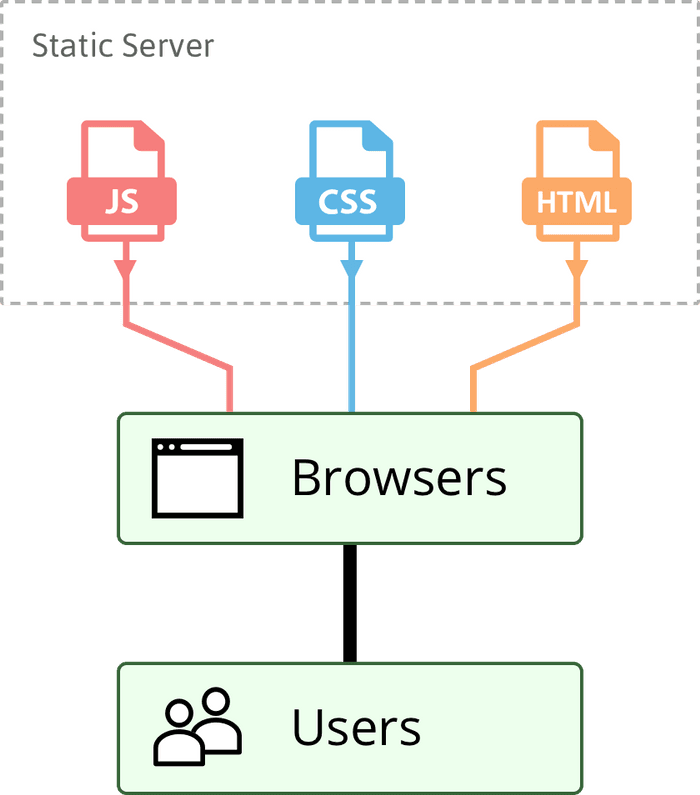

diagram live

Pretty simple right?

The two most popular choices that I am aware of are S3 (cheap) and GitHub Pages (free).

Deployment

Your assets have to get onto the internet somehow right?

The way you get your assets onto your static server / storage service varies based on the service.

For GitHub Pages I recommend using an npm package called gh-pages. For S3 I recommend using the s3 npm package.

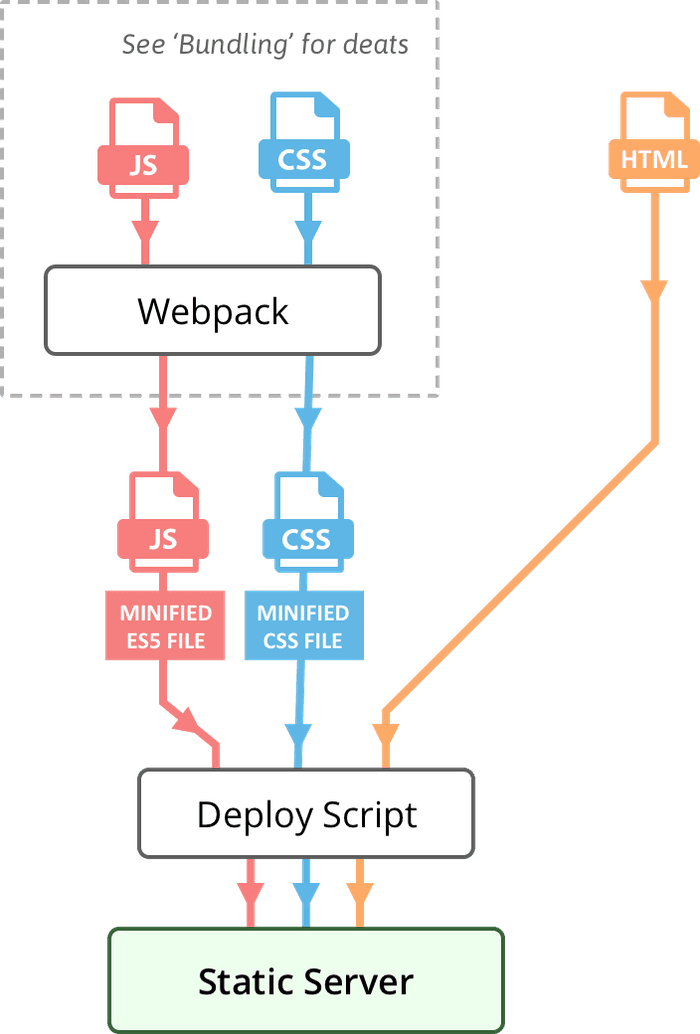

diagram deploy

Bundling

That last diagram is pretty simple because I intentionally left out all the bundling details.

Bundling is the process of converting the code you write (usually many files) into the code your browser uses. Some common bundling steps are:

  • combine multiple JavaScript files into one
  • minify JavaScript for a smaller download
  • process CSS

Bundling configuration varies a lot from project to project. One thing that is always the same is the package manager, npm.

Another common theme is Babel. The JavaScript specification has improved a lot over the past few years, and browsers never have all the newest features. Babel converts new-feature JavaScript (ES6, ES7, or ES8) to the JavaScript that browsers understand (ES5).

Here's the bundling overview:

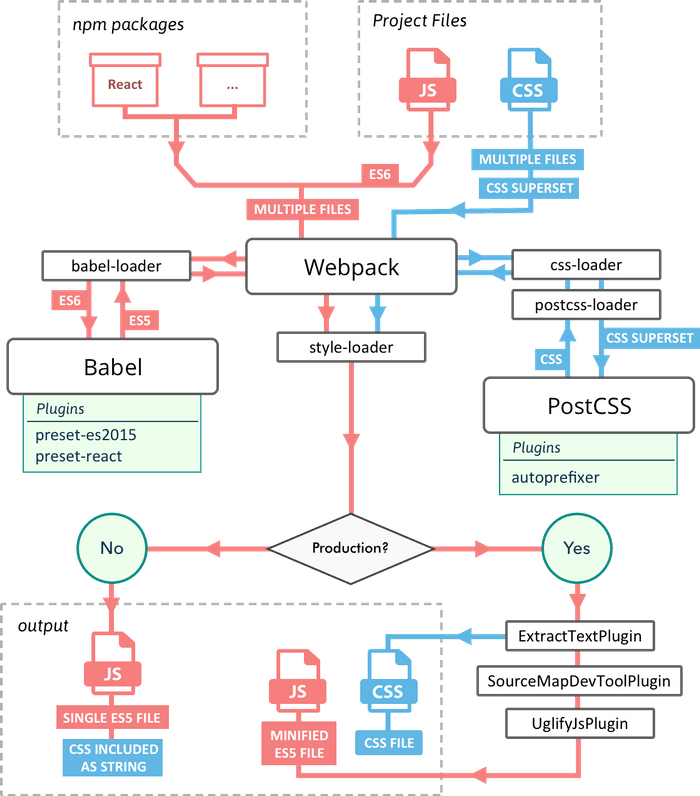

diagram bundle

This particular diagram depicts a Webpack React project with PostCSS and autoprefixer:

  • Webpack: Manages the entire bundling process. Could be replaced by another bundler like Rollup.
  • React: View library. Could be replaced with another view library like Vue.js.
  • PostCSS: Plugin-based CSS processor. Could be replaced with another CSS processor like Sass.
  • Autoprefixer: PostCSS plugin that adds CSS prefixes like -webkit so you don’t have to.

Any of the above components could be swapped out for other tools, but these are common choices.

As you can see the bundler plays a huge role. We are using Webpack as our bundler, and in the diagram there are 4 Webpack loaders and 3 Webpack plugins.

Webpack Loaders

Loaders are basically plugins, but they are a specific type of plugin. They are responsible for processing particular types of files.

I’ve only used four loaders on this occasion, but there are many more loaders.

  • babel-loader: Loads .js files. Converts ES6+ JavaScript to ES5 using Babel.
  • css-loader: Loads .css files to be used by other loaders.
  • postcss-loader: Processes .css files with a series of plugins, in this case the only plugin is autoprefixer.
  • style-loader: Includes your CSS files as a string within your .js bundle. This way a single file can include both code and styles.

Webpack Plugins

In this case the plugins are only used for production. But there are many other useful webpack plugins.

  • ExtractTextPlugin: Remove CSS from the .js and output as a separate .css file. It is awkward that the CSS is injected and then removed, but this is the way it is done.
  • SourceMapDevToolPlugin: Creates a source map.
  • UglifyJsPlugin: Minifies your JavaScript.

Development

Of course we cannot forget development. In development further tools are useful for a speedy workflow.

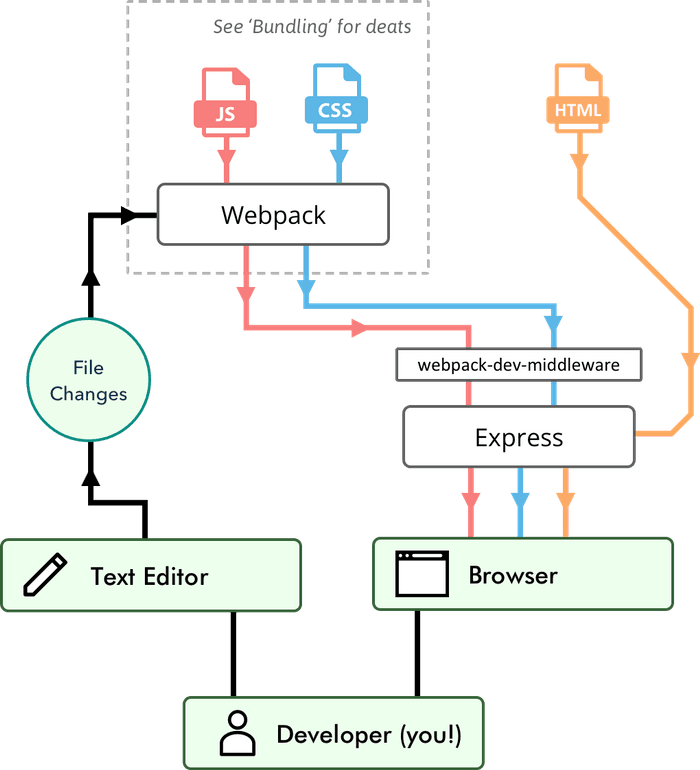

diagram developer

Here I’m using webpack-dev-middleware with Express. An even more popular choice is webpack-dev-server.

Either way, this is a server that you run ONLY in development. It automatically rebuilds your JavaScript and CSS any time you make a change in your editor.

Conclusion

I hope this helped to give you a high-level overview of one way that modern static sites are built. If you are a visual learner like myself, join the mailing list for more articles with diagrams like those above.
